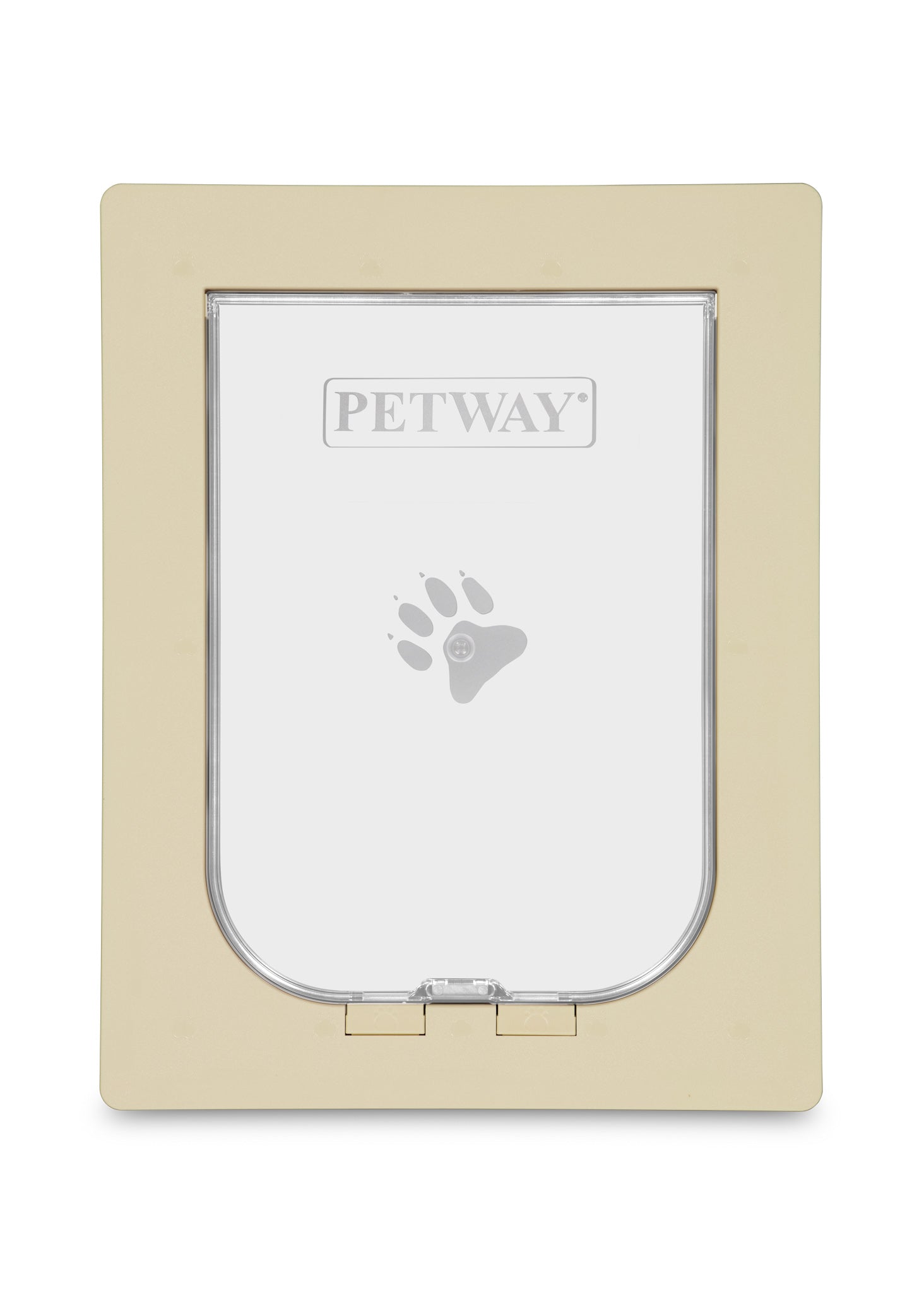

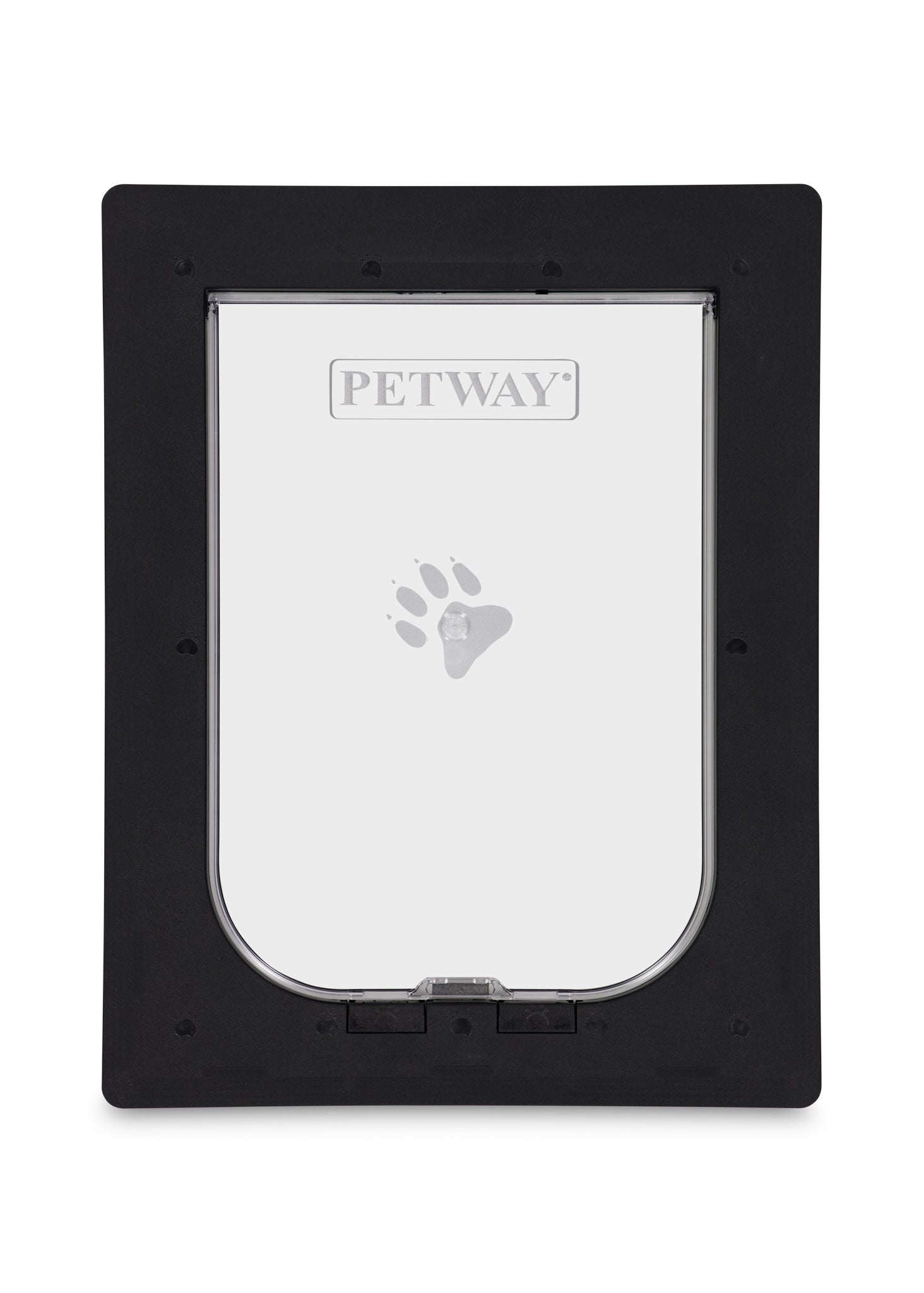

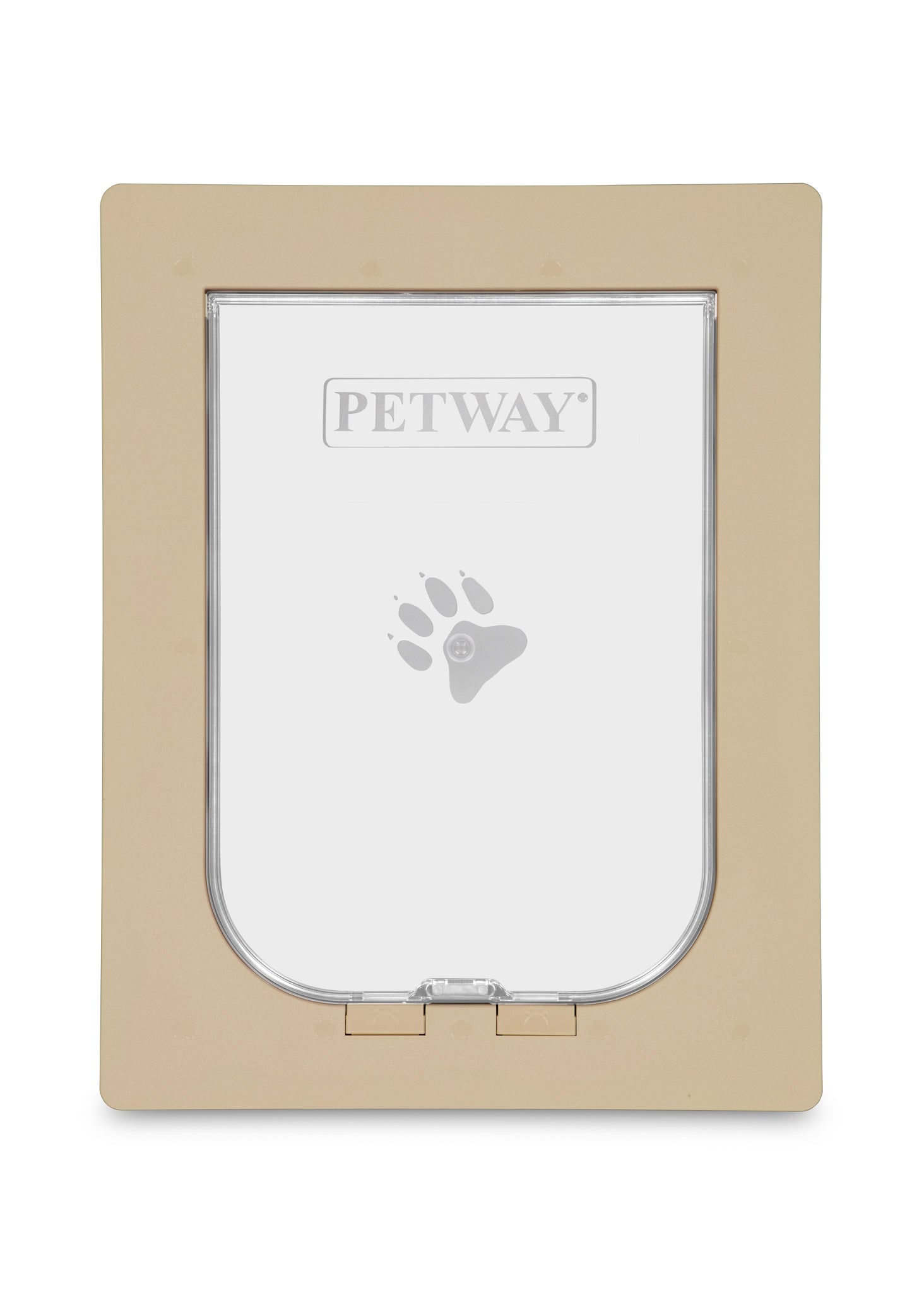

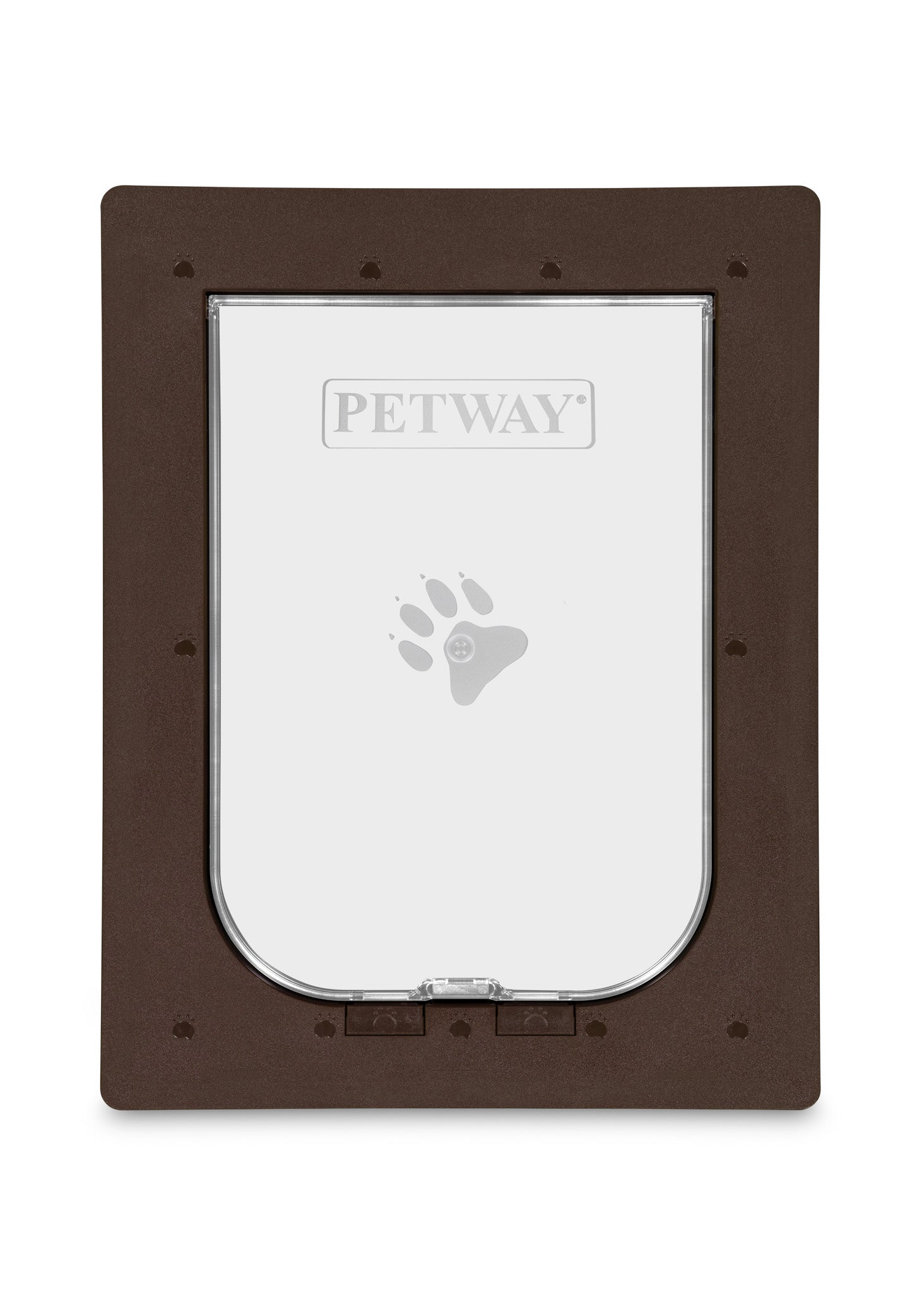

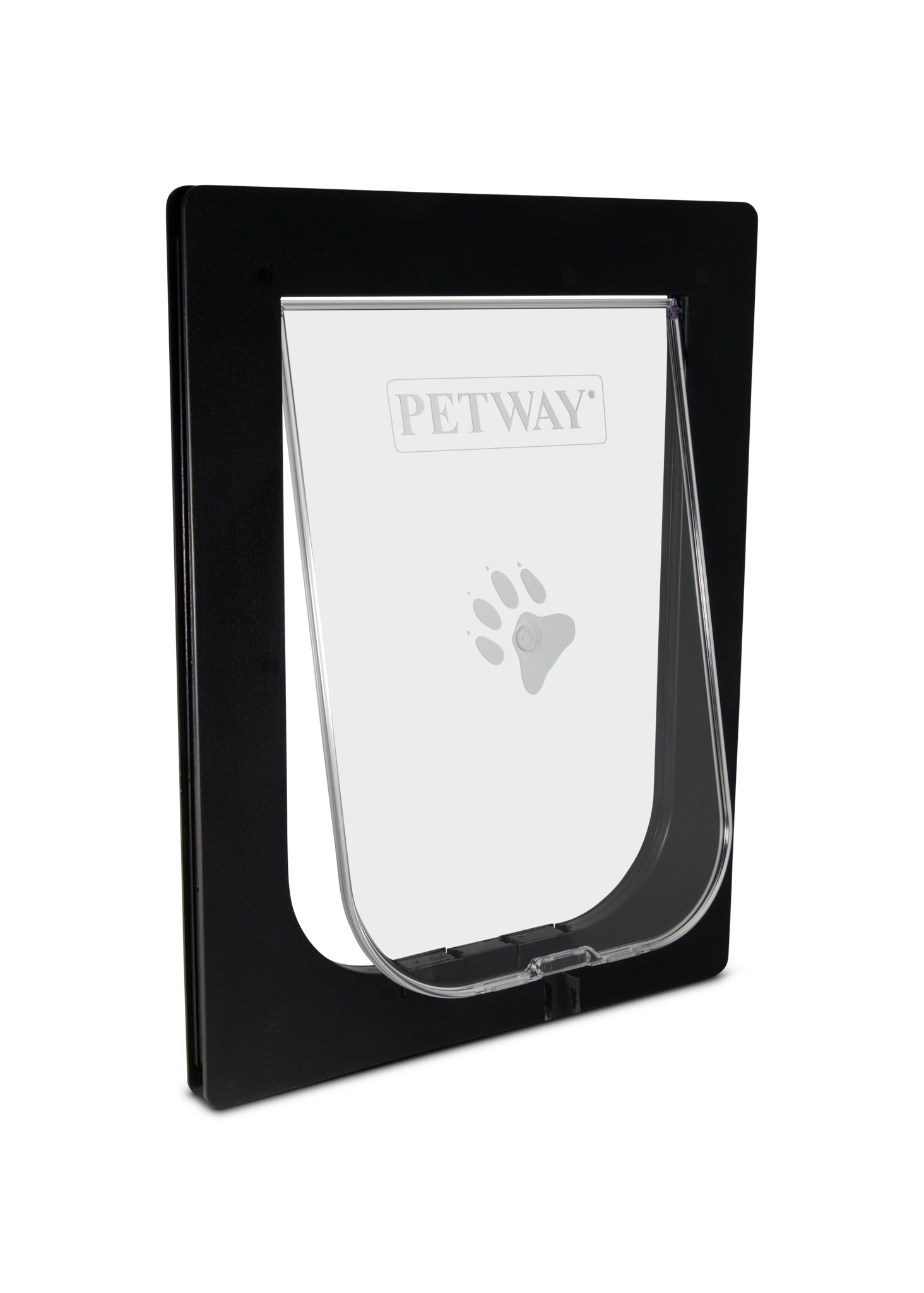

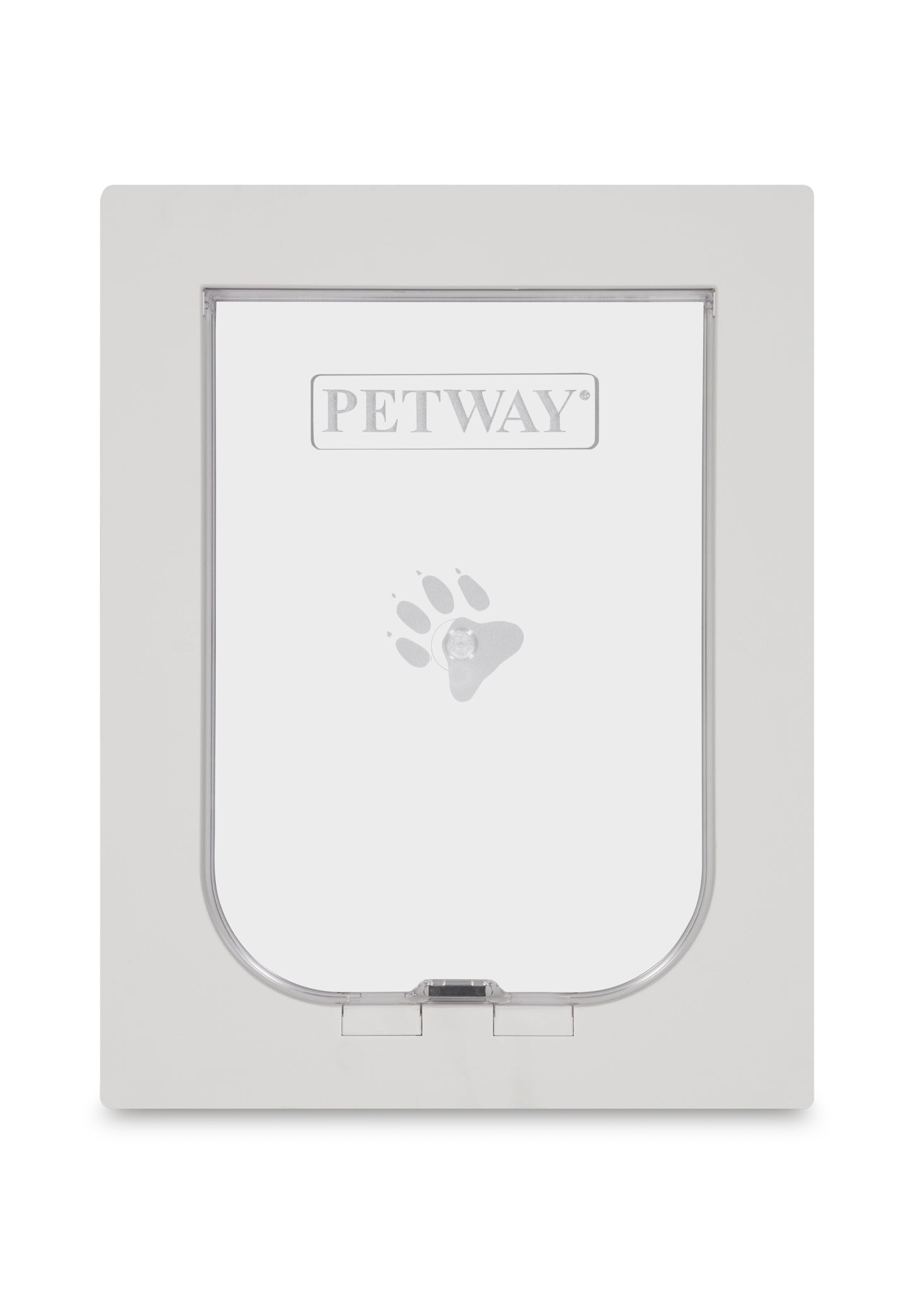

Petway Pet Door for Security Screens - Medium
- Australian Made
- Made for all types of security screens

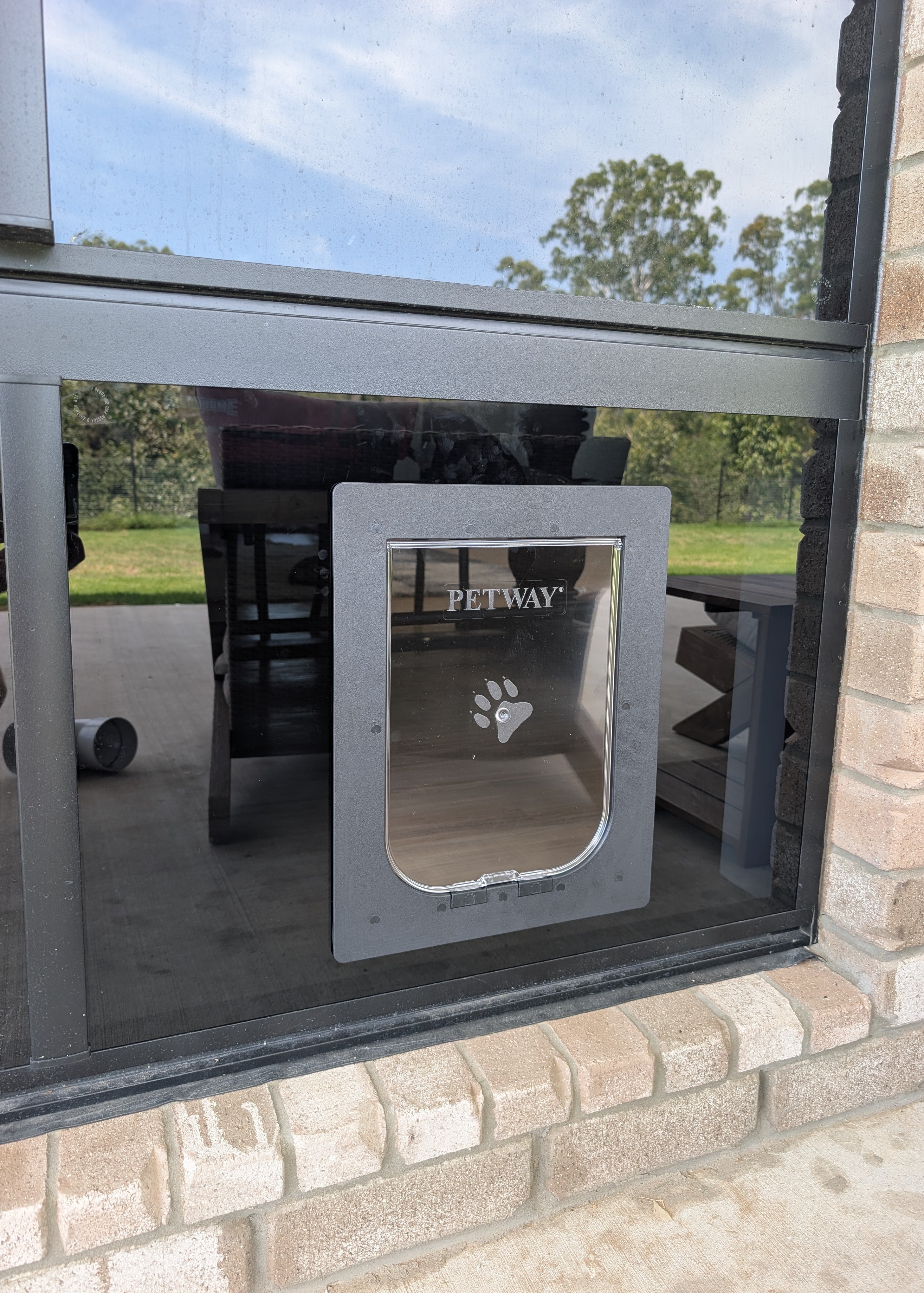

- Can also be fitted to glass
- Avaliable in three sizes
- Multiple colours available
- Slim design - no interference, allows door to slide past
- 4-way locking clips at bottom
- Magnet in flap to stop it from moving
- Easy to fit with simple fitting instructions
- Can be fitted without taking security screen door off
- UV stabilised
- Spare parts available
- Allows you to close glass door behind
- Can fit to a standard insect screen door using support L bracket (sold separately here)
- Security Screen Pet Doors of the same size can be aligned with the Timber Pet Doors for to keep in the cooler or hotter weather.
- Available in blister packaging for physical stores
- 12 month warranty
Size
- Flap Opening: 305mm H x 225mm W
- Overall Frame: 405mm H x 315mm W
- Cut Out Size: 375mm H x 285mm W
Best suited for pets from 9kgs - 22kgs
-
Cavoodle, French Bulldog, Beagle, Cocker Spaniel, English Springer Spaniel, Standard Schnauzer, Medium Border Collie, Whippet, Pugs, etc.
Product Code: PDM
Installation Instructions
Step-by step installation instructions below

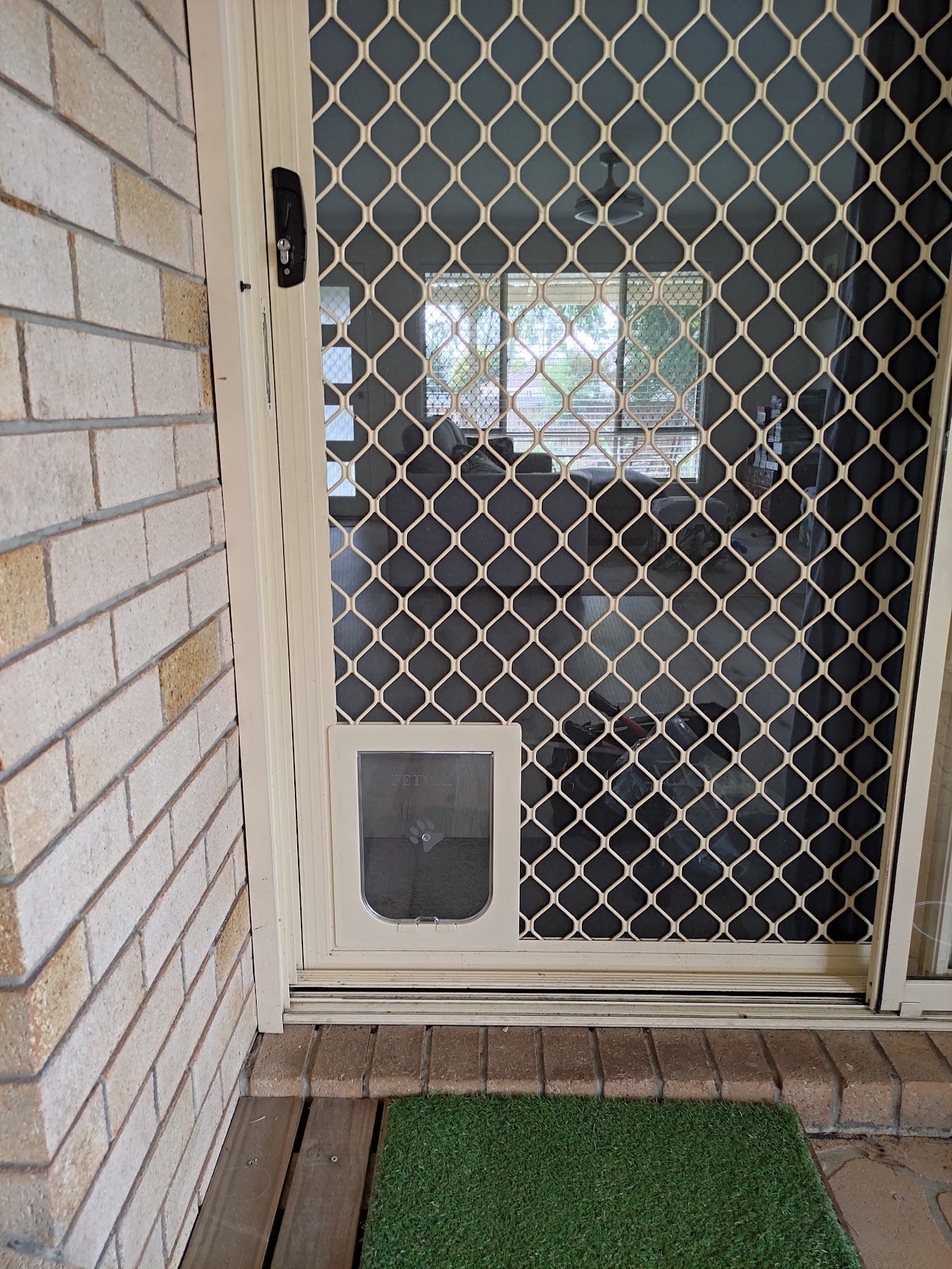

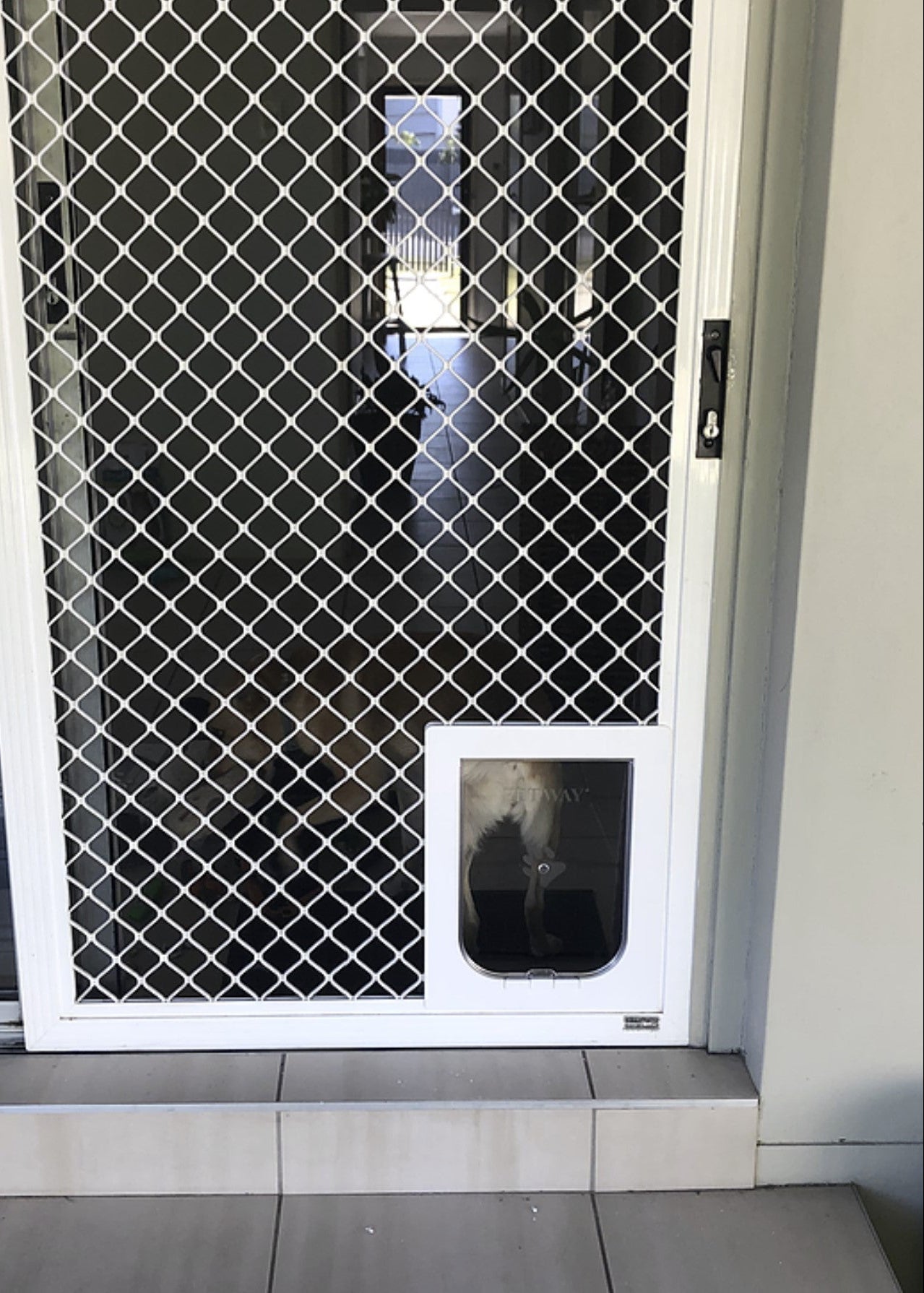

Security Screen Doors (Diamond Grill)
Cut out Sizes
| Size | Flap Opening | Overall Frame Size | Cut Out Size |
| Small | 240mm H x 190mm W | 332mm H x 282mm W | 300mm H x 250mm W |
| Medium | 305mm H x 225mm W | 405mm H x 315mm W | 375mm H x 285mm W |
| Large | 400mm H x 260mm W | 491mm H x 354mm W | 462mm H x 325mm W |
Tools Required
Phillips screwdriver, pointy nose pliers (optional), roller wheel (optional), bolt cutters or hacksaw, marker pen, Stanley knife or blade, tape measure.
Step 1.
Using pointy nose pliers, remove spline cord from bottom corner of security door below handle, taking out approximately 500mm in both directions from corner. Peel back insect screening to give clear access to grille.
Step 2.
Using tape, measure 300mm in height and 250mm in width from innermost edge of door frame. Mark with marker pen. (Refer Figure 1.)
Step 3.
Using bolt cutters or hacksaw, cut outside marked cutting line. Remove grille. Note: Any rivets may have to be removed by drilling out. Fit PVC channel (provided) over cut grille edge. Undo two screws to disassemble packaged PETWAY® pet door. Remove bag containing screws and set aside.
Step 4.
While holding outer frame against grille, place inner frame of PETWAY® pet door in position ensuring spline channel in security door frame is exposed. Using a Phillips screwdriver, tighten the two bottom screws provided. This will hold pet door frames in position. Do not over tighten screws. Gently spread the top section of frames apart and insert the flap with the word PETWAY® facing outside. Ensure the pet door stays aligned with the security door frame and does not cover security door frame spline channel. (Refer Figure 2.) Fit and tighten remaining screws. Do not over tighten screws.
Step 5.
Allow insect screening to drape back down, roll spline cord back into its original position. Using a sharp blade, cut the insect screening as shown, running the blade between the pet door flap and the frame.
(Refer Figure 2.) (Note: See back of brochure for photograph of installed unit)
Step 6.
Starting at the top corner, pre-crease insect screening into the channel, then run the spline cord (provided) into the pet door spline channel. Using a sharp blade, trim off any excess spline cord and insect screening.
Step 7.
Assembly is now complete. The raised rectangle pieces below the flap are sliding lock clips which are provided to keep your pet in or out.
(Refer Figure 3).
WARNING: The Petway® pet door may increase risk of theft or damage by an intruder or unwanted animal. The product is not to be fitted on any doors leading to an unfenced swimming pool. PETWAY® Access Doors and their agents will not be liable for any loss or damage caused by fitting and using their product.

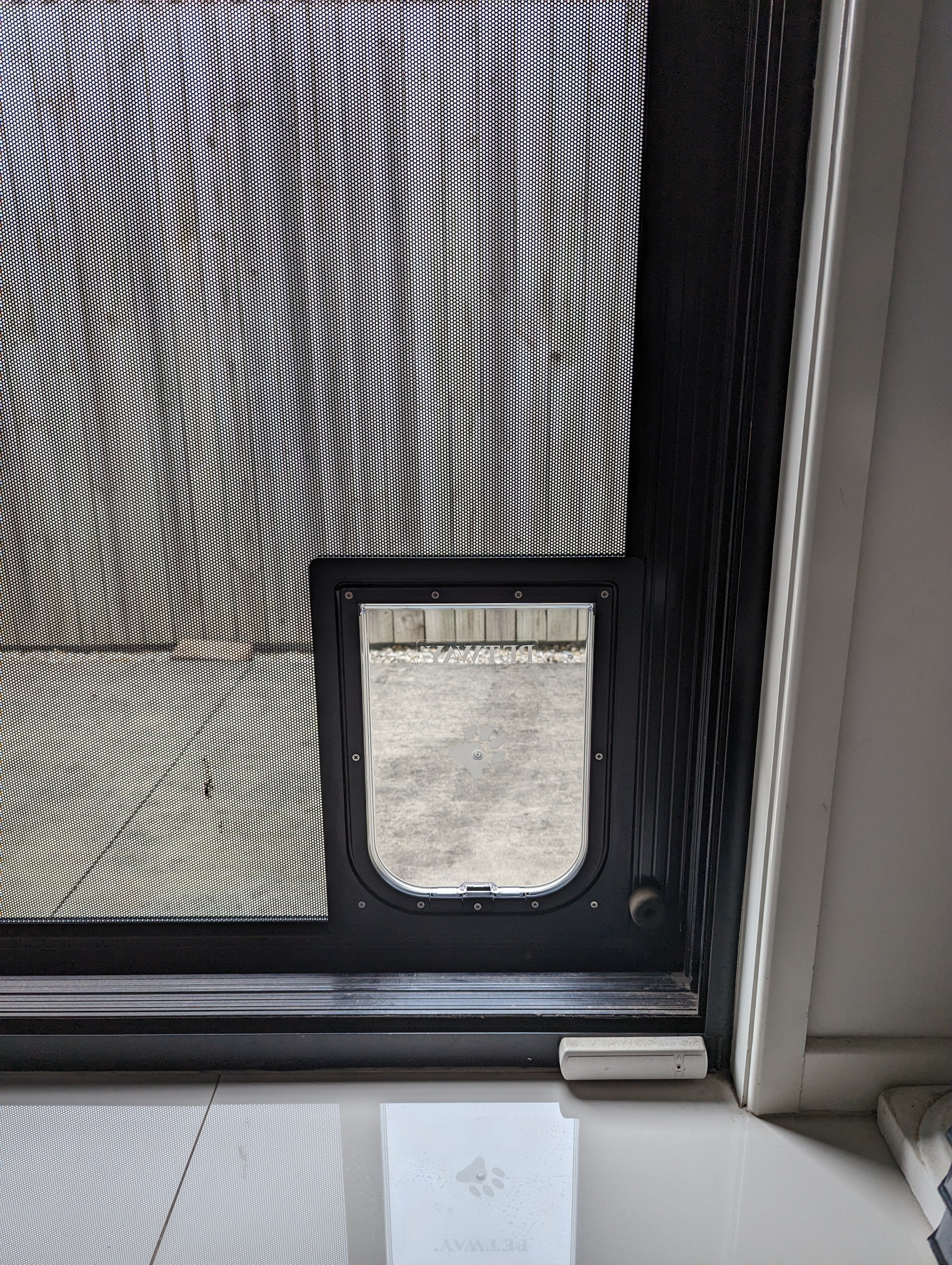

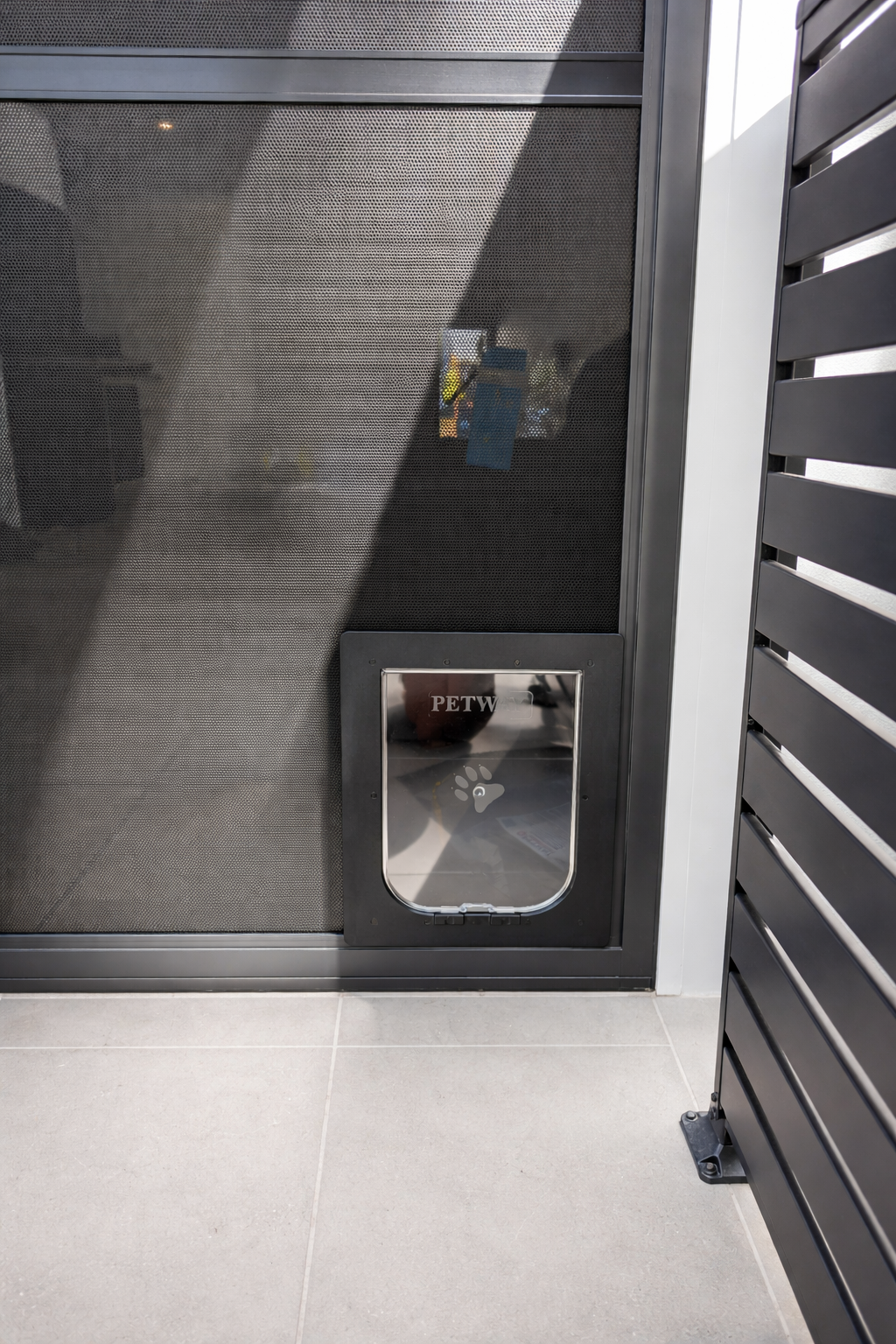

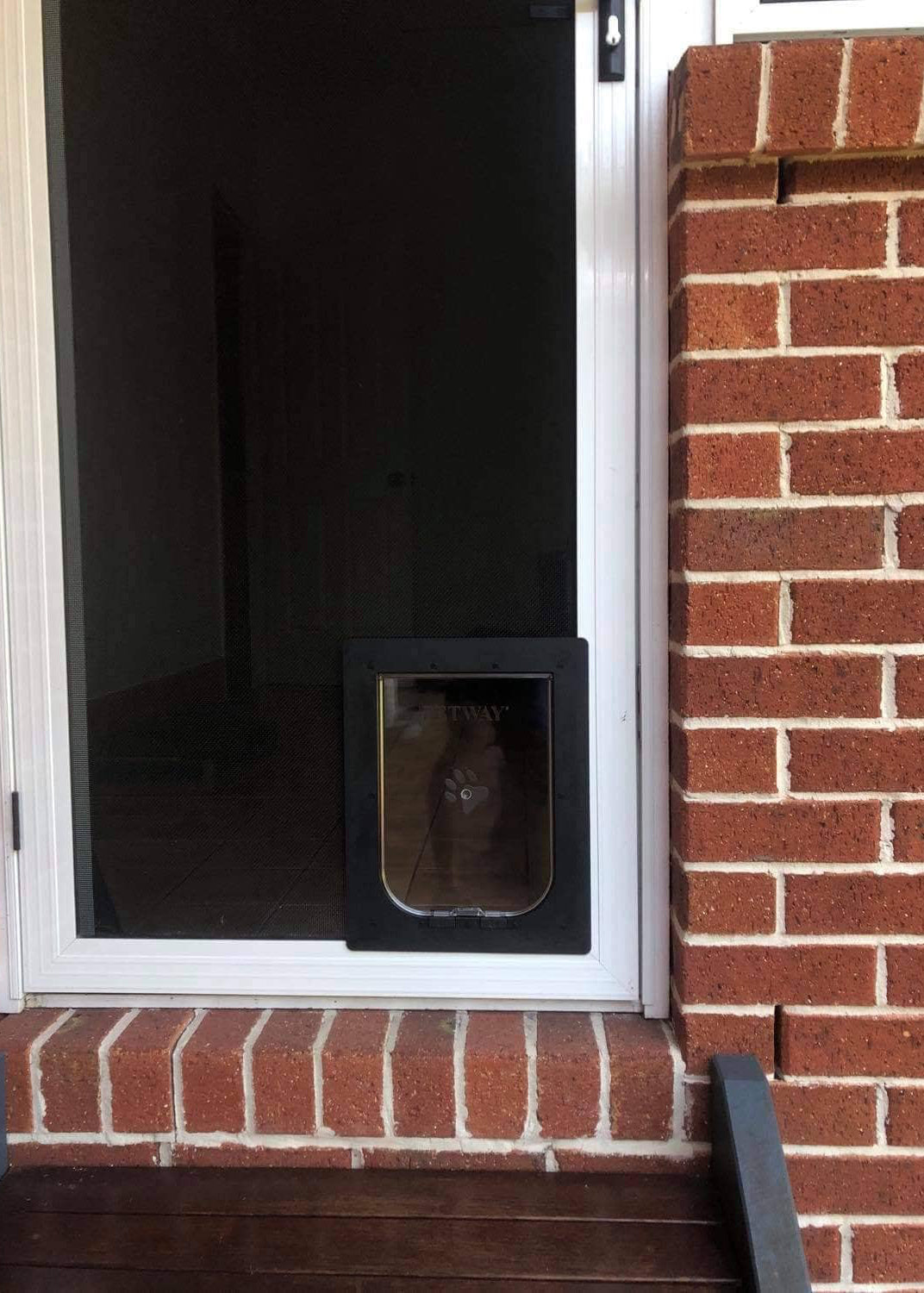

Security Screen Mesh (Crimsafe, Amplimesh, SecureView, PerfGuard, Invisi-gard)
Cut out Sizes
| Size | Flap Opening (HxW) | Overall Frame Size (HxW) | Cut Out Size (HxW) |
| Small | 240mm x 190mm | 332mm x 282mm | 300mm x 250mm |
| Medium | 305mm x 225mm | 405mm x 315mm | 375mm x 285mm |
| Large | 400mm x 260mm | 491mm x 354mm | 462mm x 325mm |
Tools Required
Phillips screwdriver, pointy nose pliers (optional), roller wheel (optional), bolt cutters or hacksaw, marker pen, Stanley knife or blade, tape measure.
Step 1.
Using pointy nose pliers, remove spline cord from bottom corner of security door below handle, taking out approximately 500mm in both directions from corner. Peel back insect screening to give clear access to grille.
Step 2.
Using tape, measure 300mm in height and 250mm in width from innermost edge of door frame. Mark with marker pen.
(Refer Figure 1.)
Step 3.
Using bolt cutters or hacksaw, cut outside marked cutting line. Remove grille. Note: Any rivets may have to be removed by drilling out. Fit PVC channel (provided) over cut grille edge. Undo two screws to disassemble packaged PETWAY® pet door. Remove bag containing screws and set aside.
Step 4.
While holding outer frame against grille, place inner frame of PETWAY® pet door in position ensuring spline channel in security door frame is exposed. Using a Phillips screwdriver, tighten the two bottom screws provided. This will hold pet door frames in position. Do not over tighten screws. Gently spread the top section of frames apart and insert the flap with the word PETWAY® facing outside. Ensure the pet door stays aligned with the security door frame and does not cover security door frame spline channel. (Refer Figure 2.) Fit and tighten remaining screws. Do not over tighten screws.
Step 5.
Allow insect screening to drape back down, roll spline cord back into its original position. Using a sharp blade, cut the insect screening as shown, running the blade between the pet door flap and the frame.
(Refer Figure 2.) (Note: See back of brochure for photograph of installed unit)
Step 6.
Starting at the top corner, pre-crease insect screening into the channel, then run the spline cord (provided) into the pet door spline channel. Using a sharp blade, trim off any excess spline cord and insect screening.
Step 7.
Assembly is now complete. The raised rectangle pieces below the flap are sliding lock clips which are provided to keep your pet in or out.
(Refer Figure 3).
WARNING: The Petway® pet door may increase risk of theft or damage by an intruder or unwanted animal. The product is not to be fitted on any doors leading to an unfenced swimming pool. PETWAY® Access Doors and their agents will not be liable for any loss or damage caused by fitting and using their product.

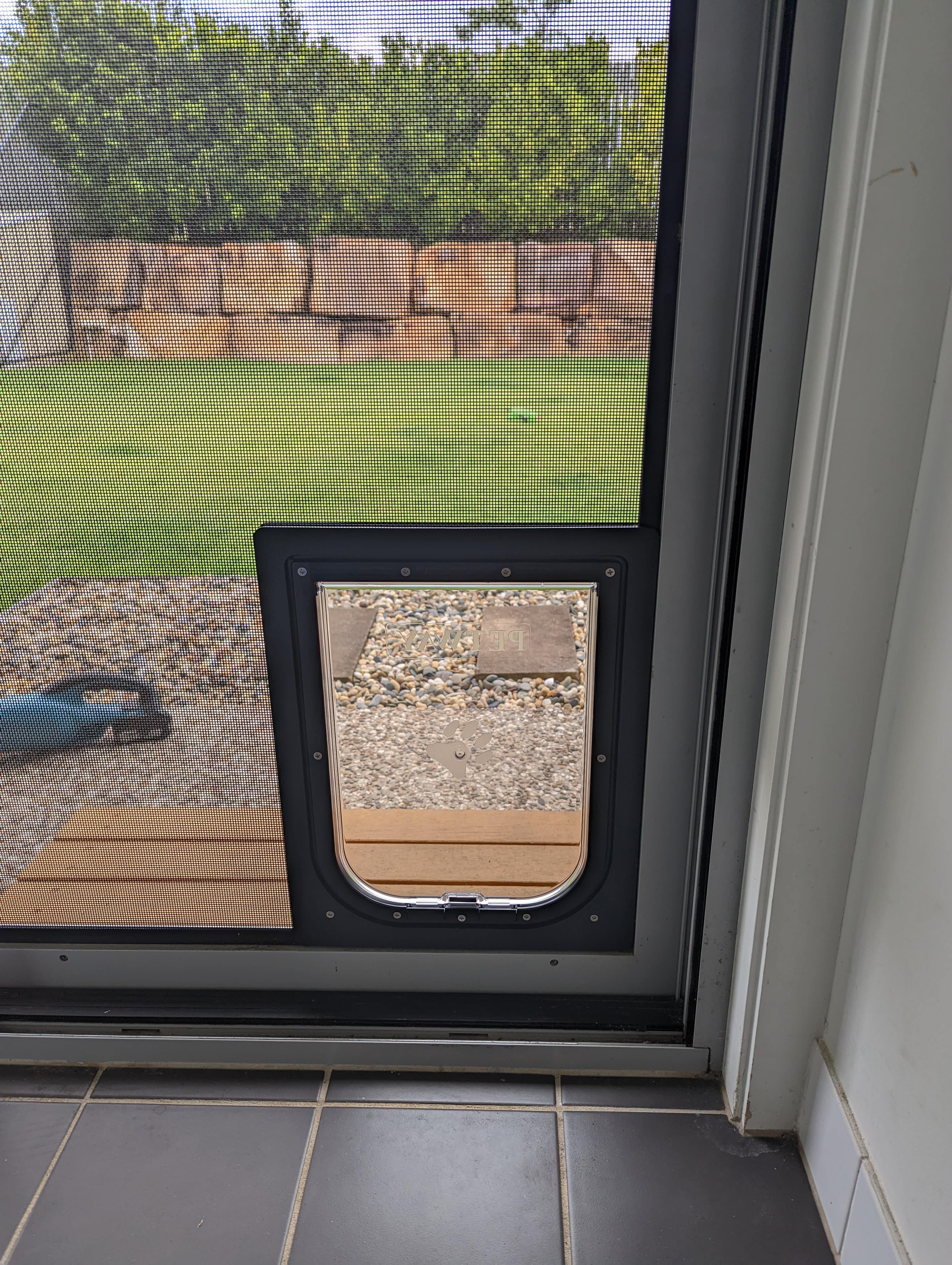

Fly Screen Doors
Cut out Sizes
| Size | Flap Opening (HxW) | Overall Frame Size (HxW) | Cut Out Size (HxW) |
| Small | 240mm x 190mm | 332mm x 282mm | 300mm x 250mm |
| Medium | 305mm x 225mm | 405mm x 315mm | 375mm x 285mm |
| Large | 400mm x 260mm | 491mm x 354mm | 462mm x 325mm |
Tools Required
Phillips screwdriver, pointy nose pliers (optional), roller wheel (optional), marker pen, stanley knife or blade, tape measure.
Step 1.
Using pointy nose pliers, remove spline cord from bottom corner of security door below handle, taking out approximately 500mm in both directions from corner. Peel back insect screening to give clear access to grille.
Step 2.
Using tape, measure the cut out size for your chosen pet door size from innermost edge of door frame. Mark with marker pen.
(Refer Figure 1.)
Step 3.
Using bolt cutters or hacksaw, cut outside marked cutting line. Remove grille. Note: Any rivets may have to be removed by drilling out. Fit PVC channel (provided) over cut grille edge. Undo two screws to disassemble packaged PETWAY® pet door. Remove bag containing screws and set aside.
Step 4.
While holding outer frame against grille, place inner frame of PETWAY® pet door in position ensuring spline channel in security door frame is exposed. Using a Phillips screwdriver, tighten the two bottom screws provided. This will hold pet door frames in position. Do not over tighten screws. Gently spread the top section of frames apart and insert the flap with the word PETWAY® facing outside. Ensure the pet door stays aligned with the security door frame and does not cover security door frame spline channel. (Refer Figure 2.) Fit and tighten remaining screws. Do not over tighten screws.
Step 5.
Allow insect screening to drape back down, roll spline cord back into its original position. Using a sharp blade, cut the insect screening as shown, running the blade between the pet door flap and the frame.
(Refer Figure 2.) (Note: See back of brochure for photograph of installed unit)
Step 6.
Starting at the top corner, pre-crease insect screening into the channel, then run the spline cord (provided) into the pet door spline channel. Using a sharp blade, trim off any excess spline cord and insect screening.
Step 7.
Assembly is now complete. The raised rectangle pieces below the flap are sliding lock clips which are provided to keep your pet in or out.
(Refer Figure 3).
WARNING: The Petway® pet door may increase risk of theft or damage by an intruder or unwanted animal. The product is not to be fitted on any doors leading to an unfenced swimming pool. PETWAY® Access Doors and their agents will not be liable for any loss or damage caused by fitting and using their product.
Timber Doors
Glass Doors
Lock-Out Panel
